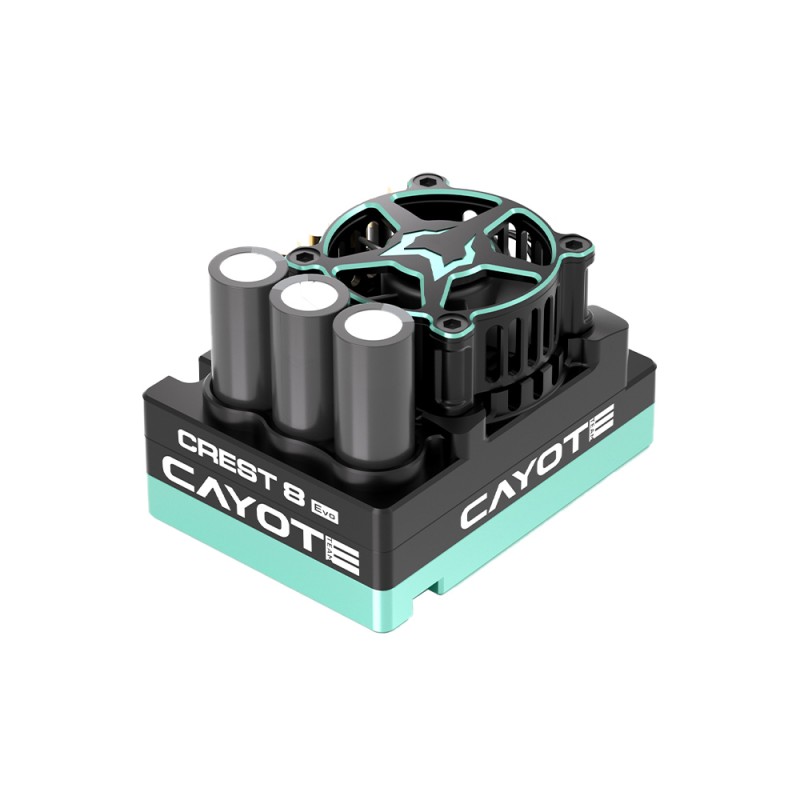

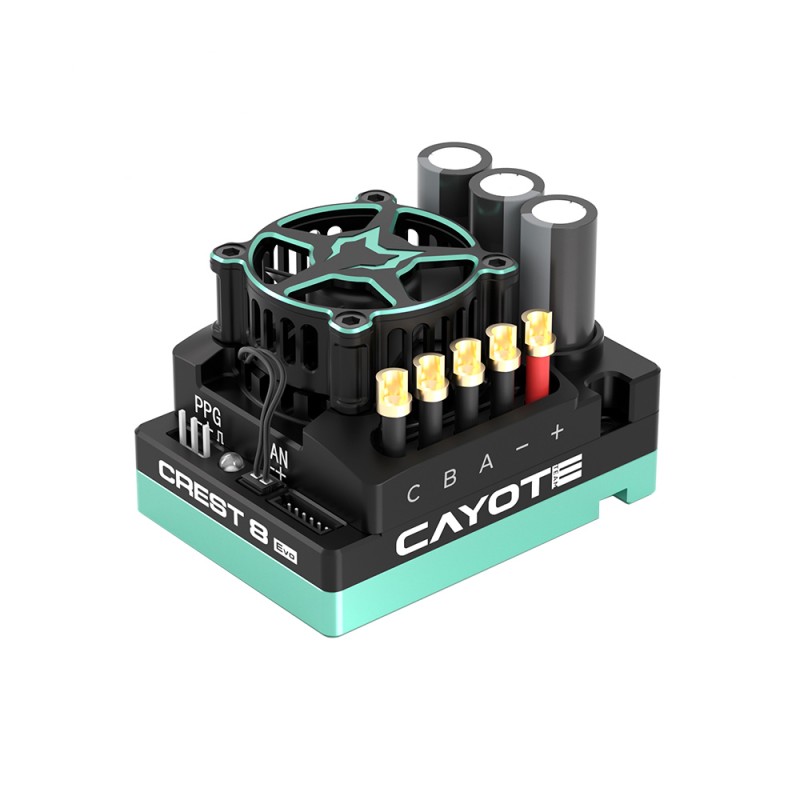

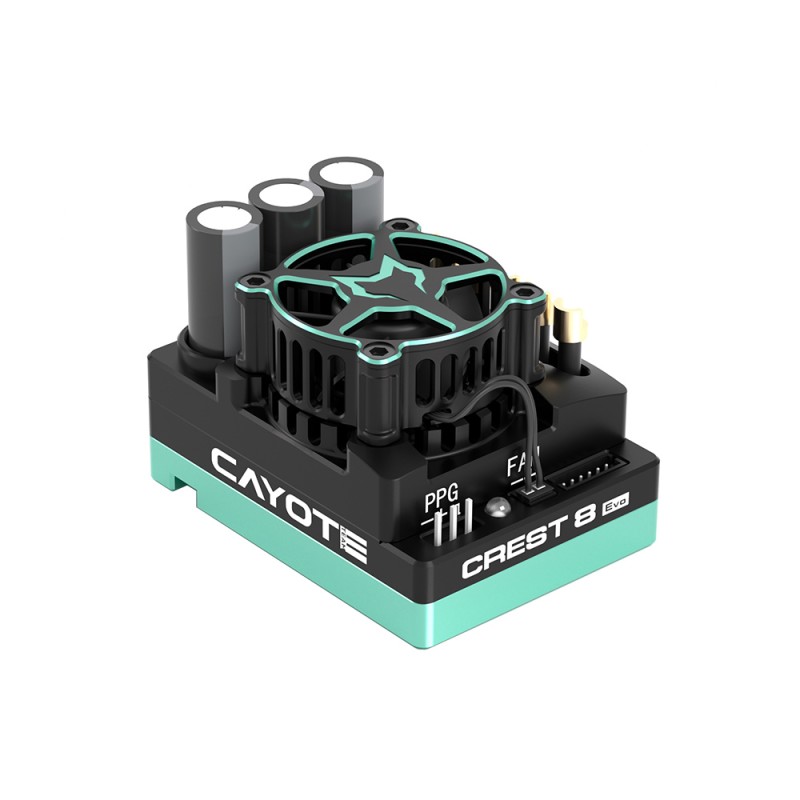

CAYOTE Racing CREST 8 Evo 1/8th Competition ESC

CAYOTE Racing CREST 8 Evo 1/8th Competition ESC

CYEA10802 CAYOTE Racing CREST 8 Evo 1/8th Competition ESC

Introducing the CAYOYE Racing CREST 8 Evo 1/8th Competition Speed Control.

Unleash performance. Exceed limits.
- Built-in Bluetooth
Instant app tuning — no modules, no cables.
- 37 adjustable settings
Throttle, brake, PWM, RPM limit & more — fully customizable for your track and style.
- Boost & Turbo Timing
Faster acceleration, smoother control — up to 10% more peak power.
- 200A continuous / 1080A peak current
Crash-resistant. Metal cooling. Built to dominate.

Advanced Cooling System
High-speed metal fan with durable metal housing keeps your ESC cool and stable under maximum load.

Reverse Polarity Protection
Built-in safeguard prevents damage from incorrect battery connection.

Capacitor Overheat Protection
Automatically protects against heat damage to ensure long-term reliability.

IP5X Dust Protection
Dust-resistant design keeps performance consistent in all track conditions.o
With Boost & Turbo Timing Technology, the CREST 8 Evo automatically adjusts timing based on RPM or throttle input.
The result? Stronger acceleration on straights, more stability through corners, and up to 10% more peak power than the previous generation.

Specification:
Continuous/Peak Current: 200A / 1080A
BEC Output: Ultra-stable Switch Mode 6V/7.4V, 8A Continuous / 12A Peak
Supported Motor Types: Sensored and Sensorless Brushless Motors
Suggested Applications: 1/8 Electric Buggy / Truggy Professional Competition
Supported Motor KV: ≥10.5T 3650 Size Motors
Dimensions: 56.8(L) × 41.6(W) × 40(H) mm
Weight: 122g
Fan Power: 6V/7.4V from Built-in BEC
Battery Cells: 2–4S LiPo
Parameter Setting: Xlink Program Box / BTune App
