RC Project Front Hub Balance Weight System - Mugen MBX8R

RC Project Front Hub Balance Weight System - Mugen MBX8R

RCPJ-MSMBX8-020 RC Project Front Hub Balance Weight System - Mugen MBX8R

The new Mugen Seiki weight kit for wheel hubs has been developed to offer greater flexibility when setting up a vehicle, enabling drivers to customise the weight distribution precisely according to the track conditions and their own driving style.

With three mounting positions available on both the front and rear, this new configuration offers a major improvement over the previous version, which only allowed a fixed position.

The new kit is compatible with Mugen Seiki part number E2146.

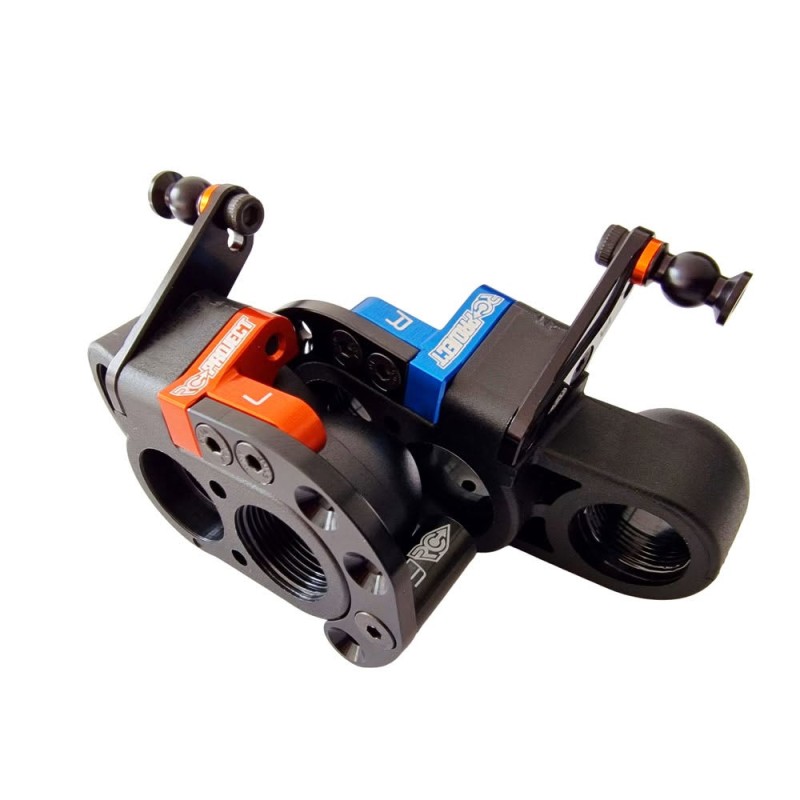

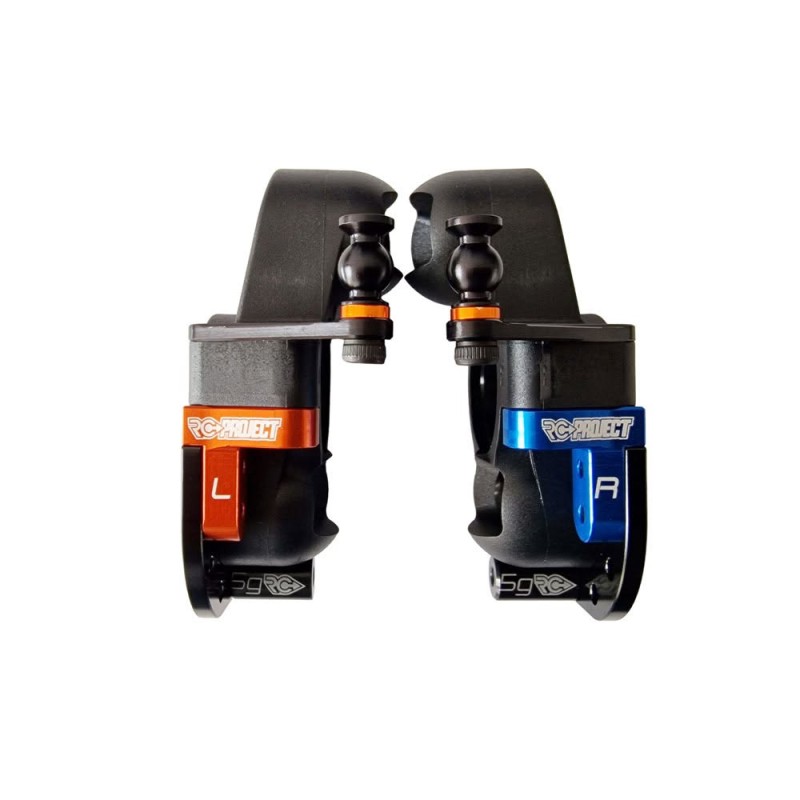

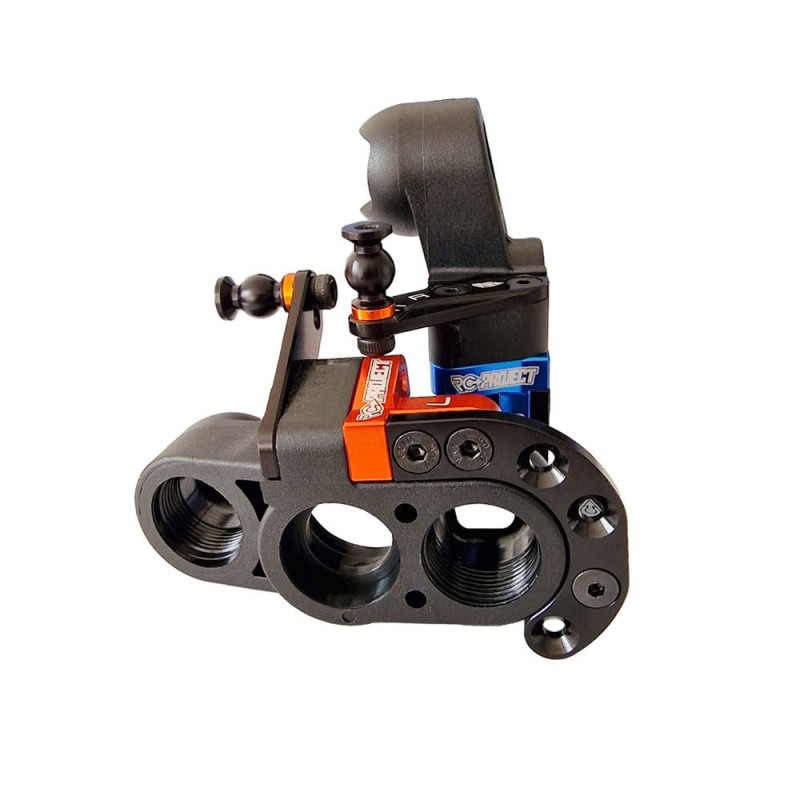

Since the bases are M3 threaded, proper installation requires drilling the hub with a 3/3.2mm drill bit to allow the M3x16 screws to pass through. The use of threadlock is also recommended to ensure a secure fit and prevent the screws from loosening during use.

Optional 7.5 g weights (RCPJ-MSMBX8-020-7.5g) will be available to purchase separately.

Key Features:
• Multiple positional holes, weights can be installed front only, rear only, or on both ends of the mounting plate

• 7.5g weights: Compatible with both front and rear positions

• 5g weights: Compatible with both front and rear positions

• Additional 7.5g and 5g weights sold separately as required

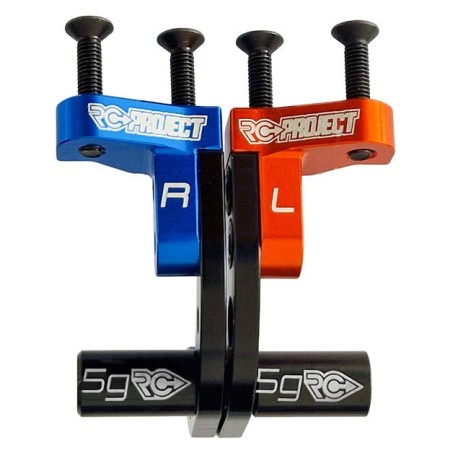

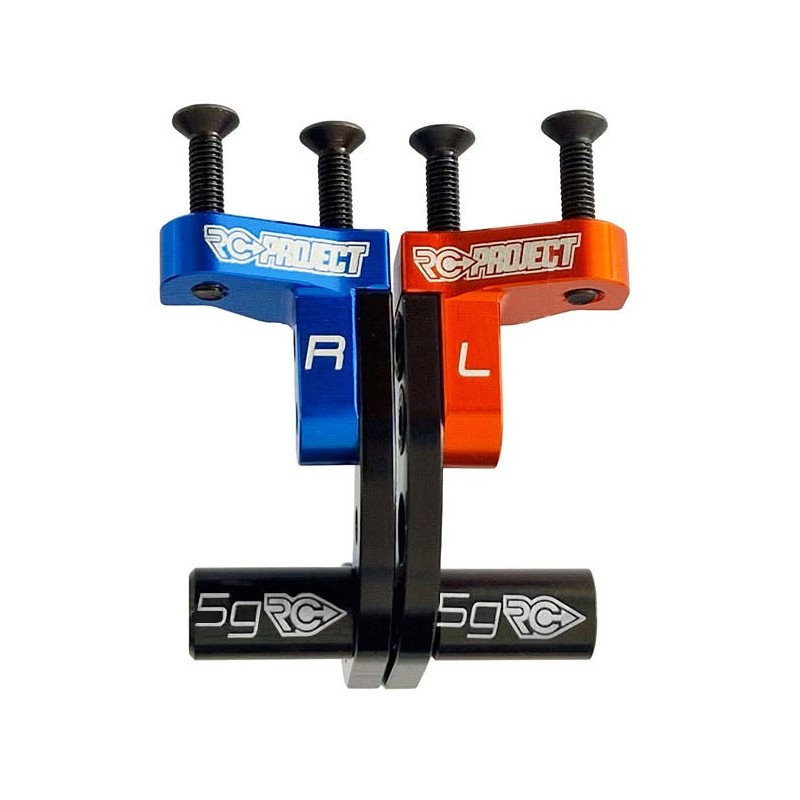

Kit Includes:
2x Aluminium mounting bases (Left and Right)

2x Aluminium supports

2x 5g Weights

12x Hex screws
