SW910045C SWORKz S12-3C 1/10 2WD Carpet Pro Buggy Kit

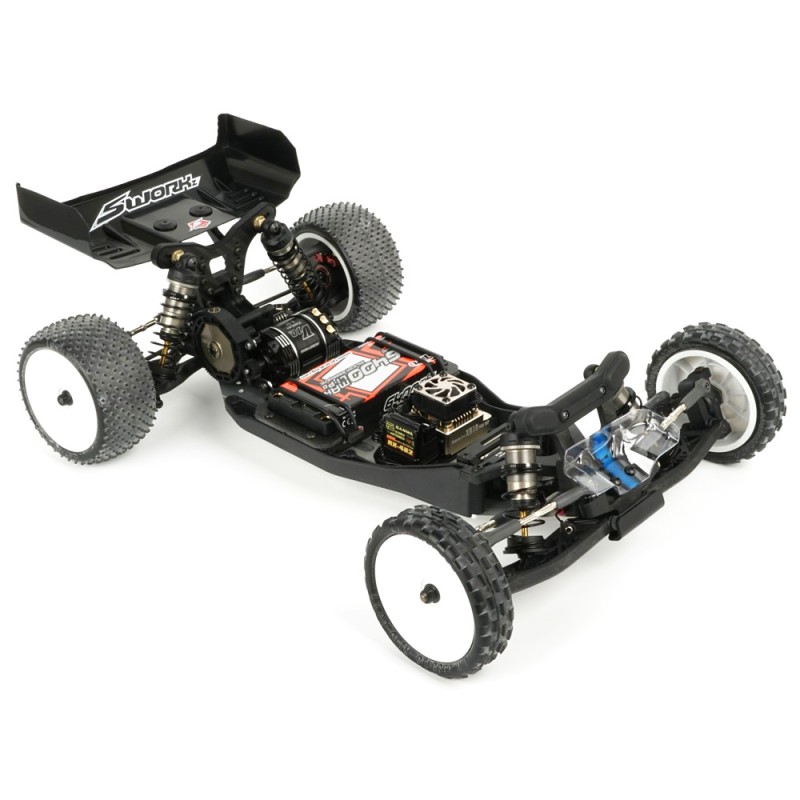

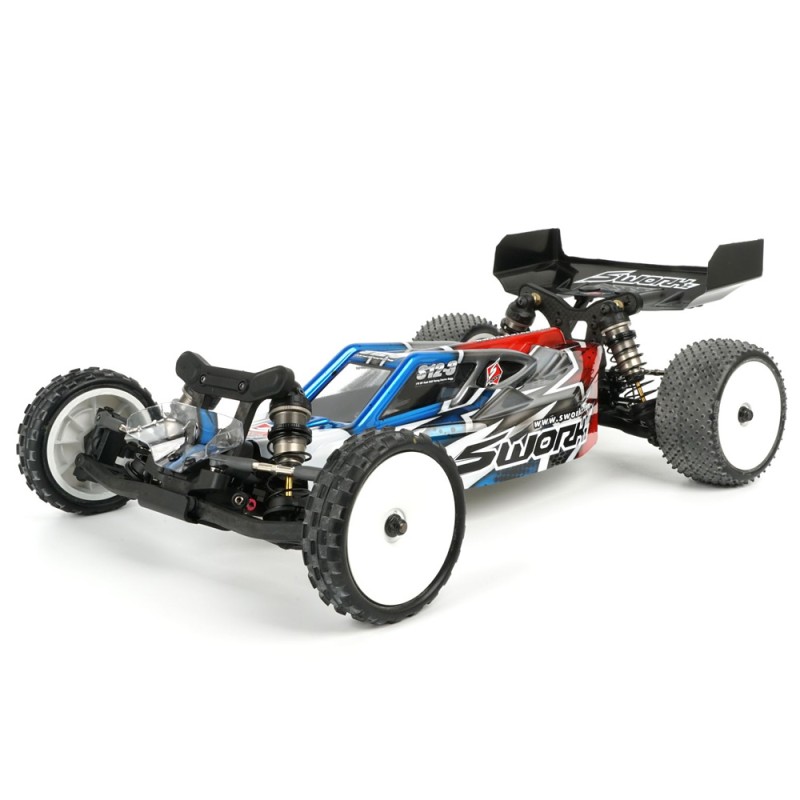

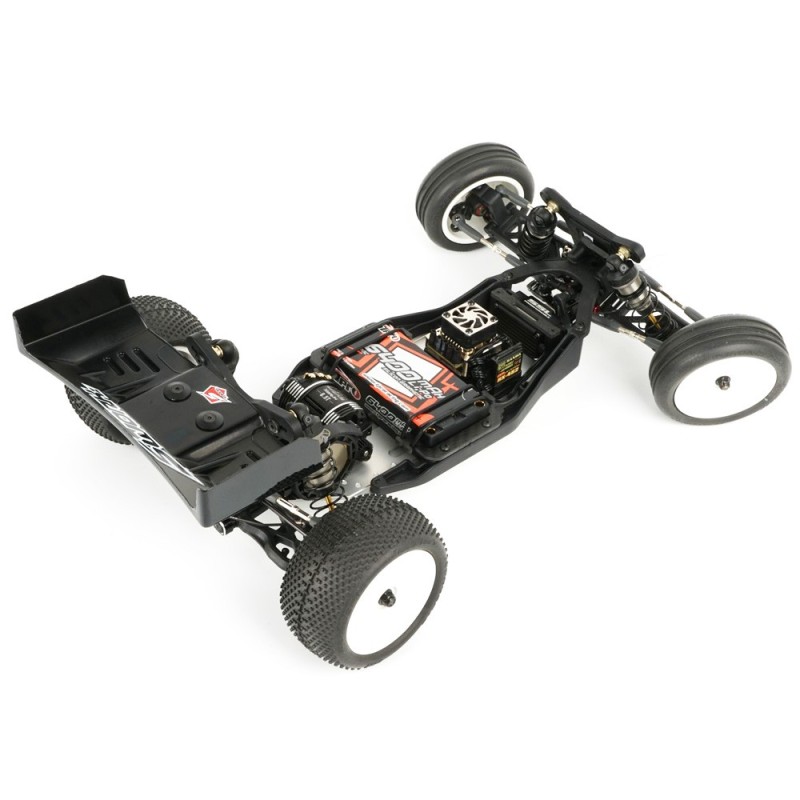

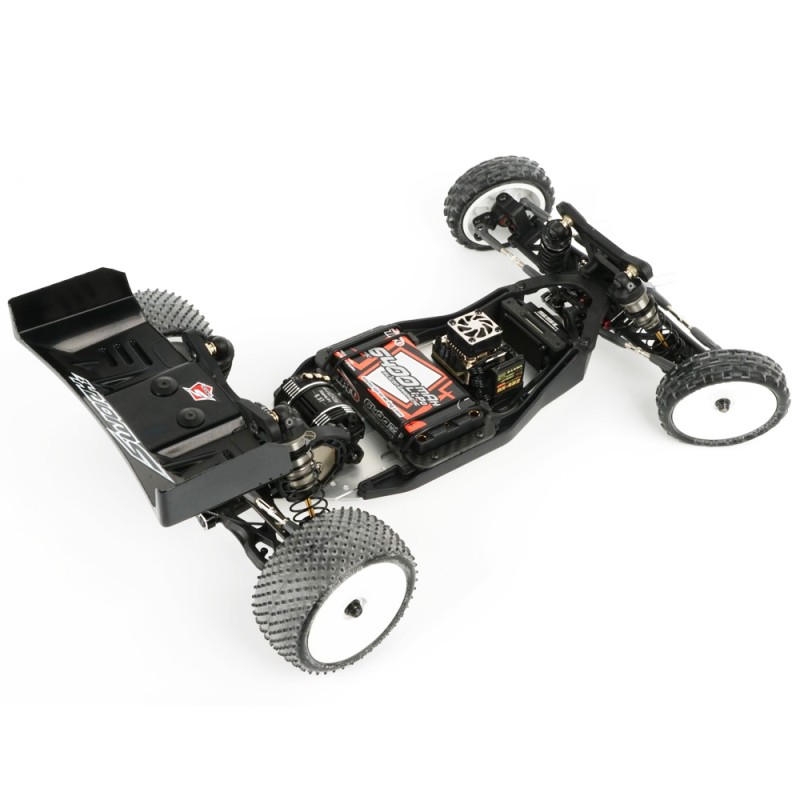

The SWORKz S12-3C Carpet Edition is a cutting-edge 1/10 scale 2WD buggy, meticulously engineered for high-performance carpet racing. Building on the proven success of the S12-2C EVO platform, this model represents a complete redesign, delivering enhanced cornering speed and effortless handling on carpet and high-traction surfaces.

Innovative Chassis Design

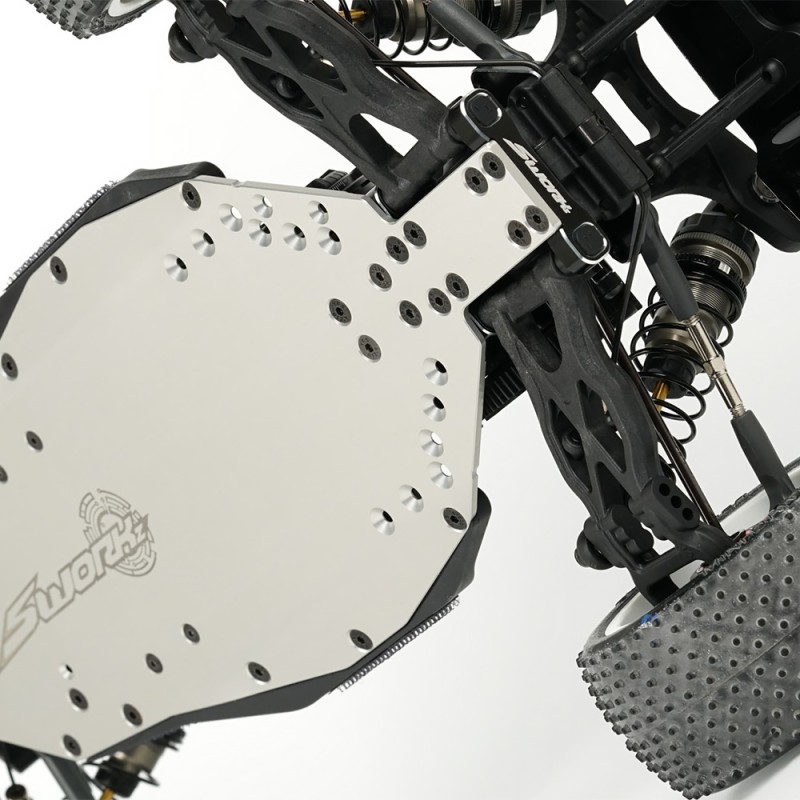

At the core of the S12-3C is a precision-engineered T7075 silver anodized aluminum chassis, designed for optimal performance and flexibility. The gearbox can now be additionally mounted to the chassis to fine-tune flex characteristics. Optional tuning plates allow for further customization of chassis flex, giving racers the ability to adapt the car’s behaviour to different track conditions. The lightweight chassis also supports up to six different battery placement configurations, enabling precise balance adjustments, making the S12-3C a versatile platform for competitive carpet racing.

Advanced Suspension System

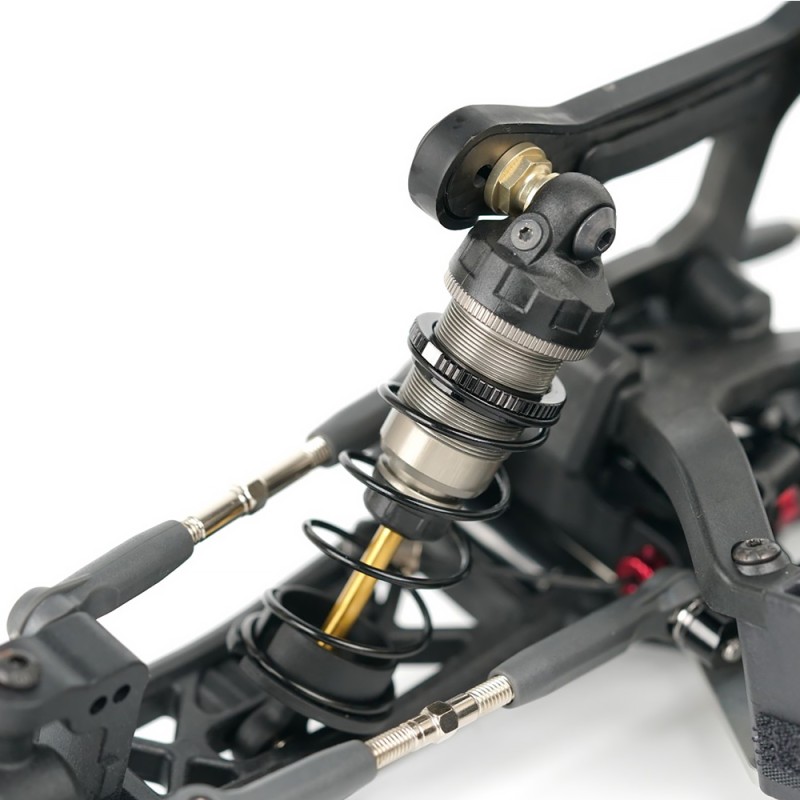

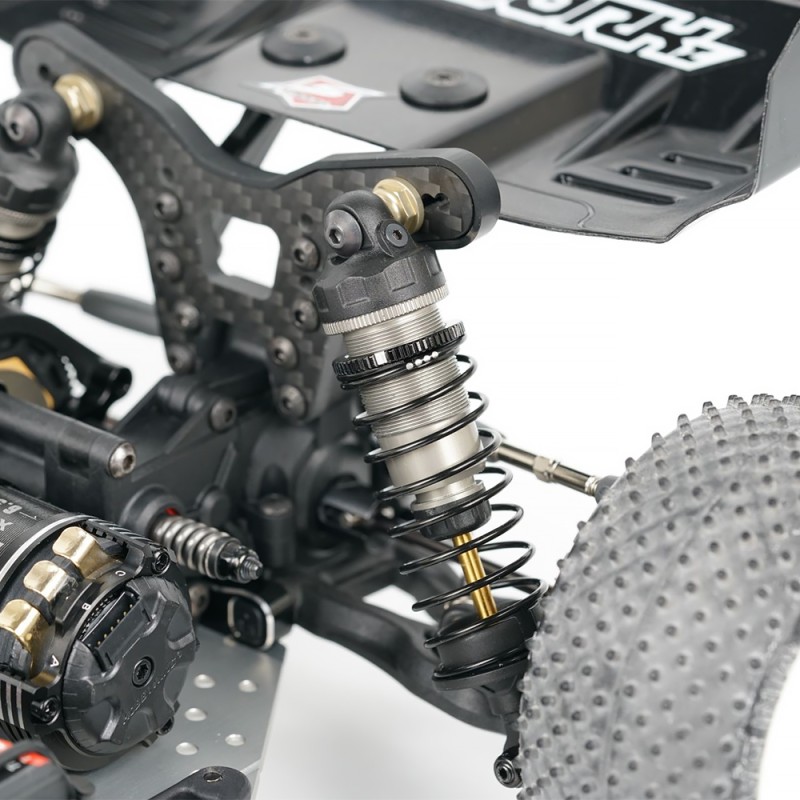

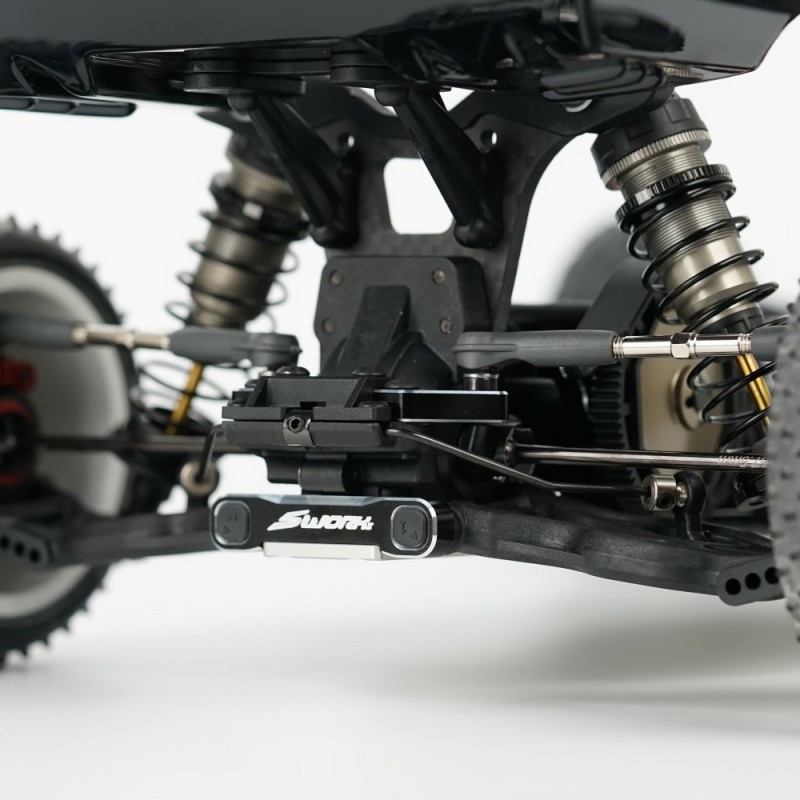

The buggy features SWORKz’s newly designed 13mm BBS Big Bore Shock System, equipped with Emulsion Precision Plastic Shock Caps and reinforced shock pistons for improved durability. Teflon-coated shock shafts ensure ultra-smooth damping response, while the included 4mm carbon shock towers provide exceptional strength. The kit also includes protective shock tower covers and the latest 13mm BBS Black Line springs with rotation-fixed spring holders for consistent performance and a huge improvement on handling of jumps.

Precision Steering and Strong Linkage System

A new 5.5mm linkage ball stud and a robust 3.5mm turnbuckle system enhance steering precision and overall stability. The full aluminum adjustable Ackermann and steering plates offer fine-tuned and smooth control in high bite conditions.

Optimized Drivetrain and Durable Slipper System

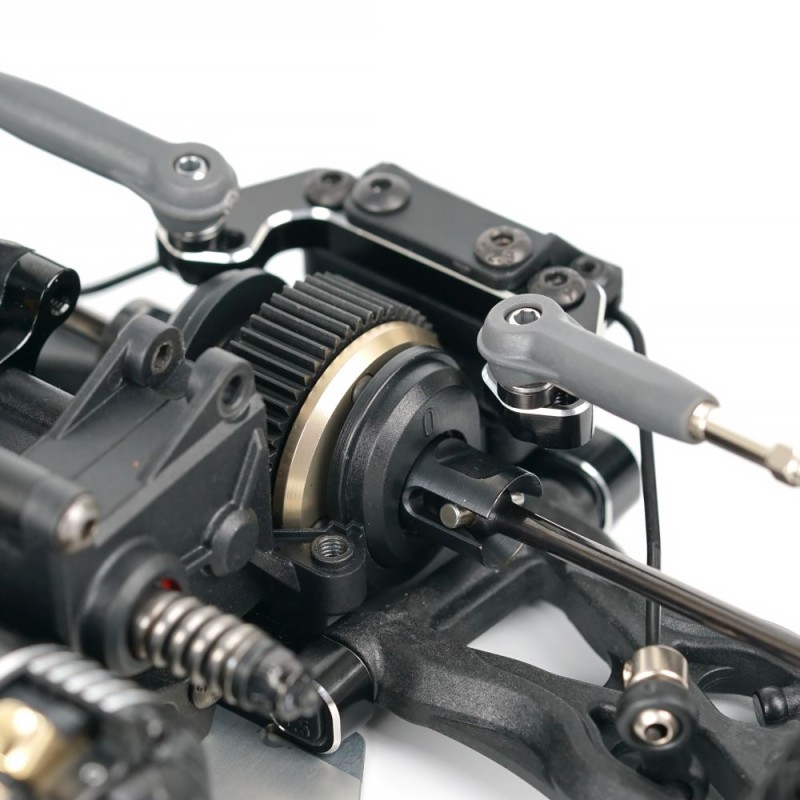

The quick-release gear differential system can be mounted in four different positions, offering flexibility for various track setups. The 2-pad slipper clutch features hard-anodized plates, heat-resistant pads, and a spur gear protector engraved with the SWORKz logo.

Geometry and Adjustability

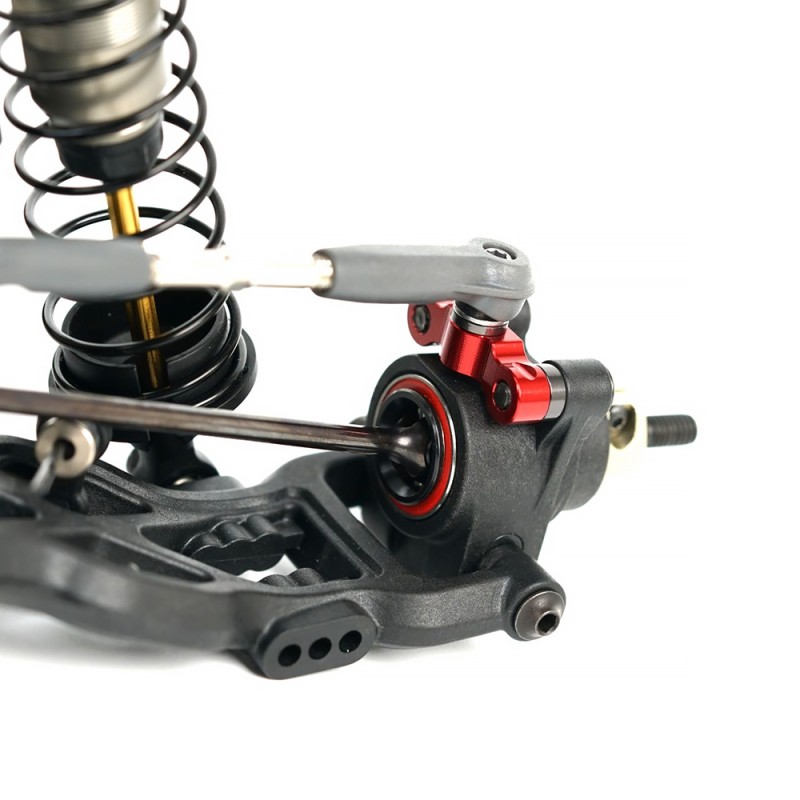

Angled lower arms lower the shock mounting position, reducing the center of gravity and improving stability. The gearbox has been optimized for ideal weight distribution, balancing size and strength. The rear hub height can be modified using the innovative Synthesis Rear Hub System and modular rear CVDs. A newly designed front and rear sway bar holder systems are included for enhanced cornering control.

Aerodynamics and Body Design

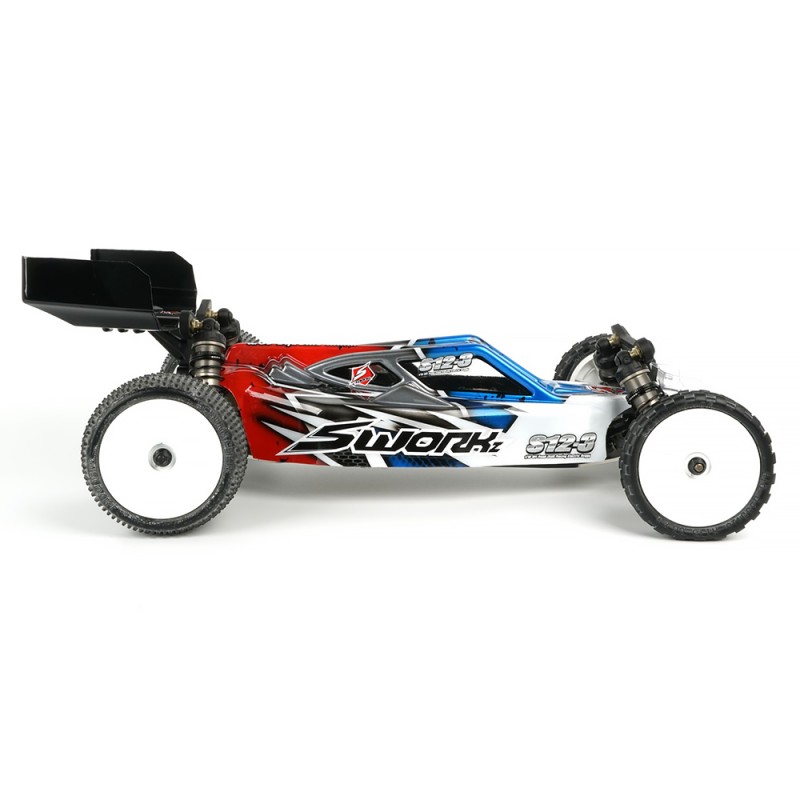

The adjustable wing mount allows for changes in height and angle while the pre-cut body shell is aerodynamically optimized for competitive racing.

Features:

• T7075 silver anodized & lightened aluminum chassis
• Adjustable flex system
• 6 different battery positions
• Quick release carbon battery mount
• Gear Differential with aluminum cover
• Strong and Quality optimized laydown gearbox
• Balanced motor position for all grip conditions
• Quick differential release system
• Adjustable differential position
• 2 Pad Slipper System with hard anodized plates
• Slipper Anti-Clock rotation adjustment
• High temperature resistant slipper pads
• Spur gear protection with laser Logo
• Brand new design SWORKz 1/10 BBS 13mm Big Bore Shock System
• New 13mm BBS Black line shock springs
• Precision plastic emulsion shock cap system
• Teflon hard coated shock shaft
• Hard coated shock body
• Hard anodized stock studs
• Unique designed shock stud screws
• New Front and Rear 4mm carbon shock towers with wide design
• Aluminum Ackerman rack and steering arms
• Carbon steering knuckle plates
• New carbon servo mount
• Super light anodized front wheel axles with adjustable hex system
• Front and Rear lower arms in longer, angled design
• Narrow front and rear bulkhead design
• Fully adjustable square aluminum front and rear toe in plates
• New Synthesis Rear Hub System with aluminum linkage holders
• Rear adjustable hubs system with CVD drive shafts
• New designed front and rear sway bar holder
• 5.5mm ball stud system
• Strong 3.5mm turnbuckle system
• Quick release electronic plate
• Optional Servo balance weight plates
• Adjustable rear wing height and angle
• Front wing mount with 65mm front wing
• New Body shell with optimized aerodynamic design

Required To Complete:

540 brushless motor, electronic speed control, steering servo (Standard or Low-Profile), shorty 2S LiPo battery, suitable charger, wheels, tyres, inserts, paint for bodyshell & basic tools for assembly.
