SWORKz S14-4D Dirt Kit with High Rigidity Chassis Conversion Set

SWORKz S14-4D Dirt Kit with High Rigidity Chassis Conversion Set

SW910034D-SET SWORKz S14-4D Dirt Kit with High Rigidity Chassis Conversion Set

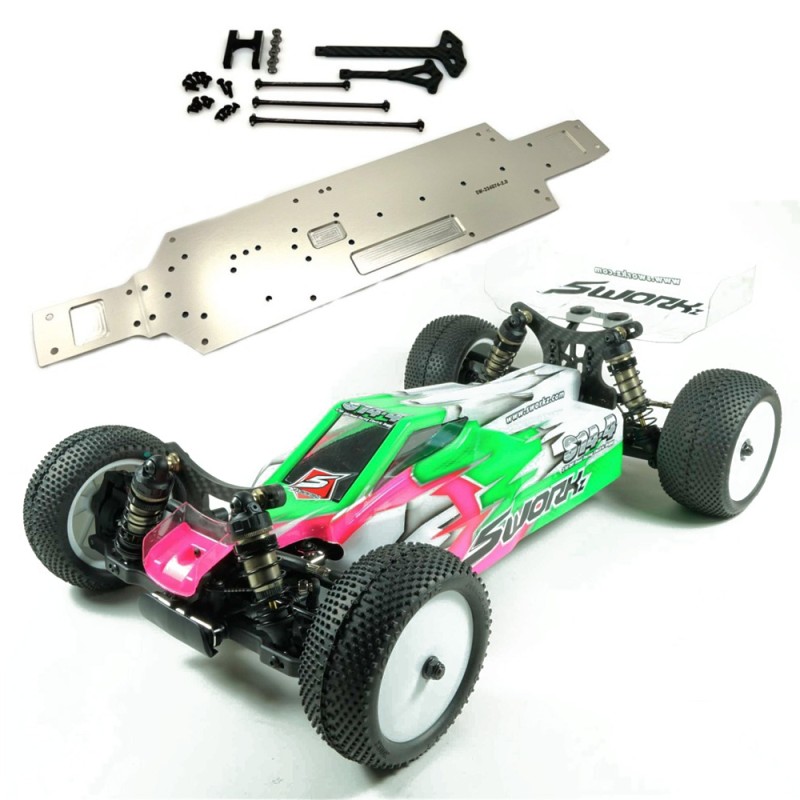

The SWORKz S14-4D Dirt Edition car, is now available as a set bundled with the recently released SWC-214021 SWORKz S14-4 Series Factory Edition High Rigidity Chassis Conversion Kit. The total cost ends up being less than purchasing both the car kit and conversion set separately, which is a huge saving if you're wanting to run the very latest specification chassis as the SWORKz racing team, for maximum performance.

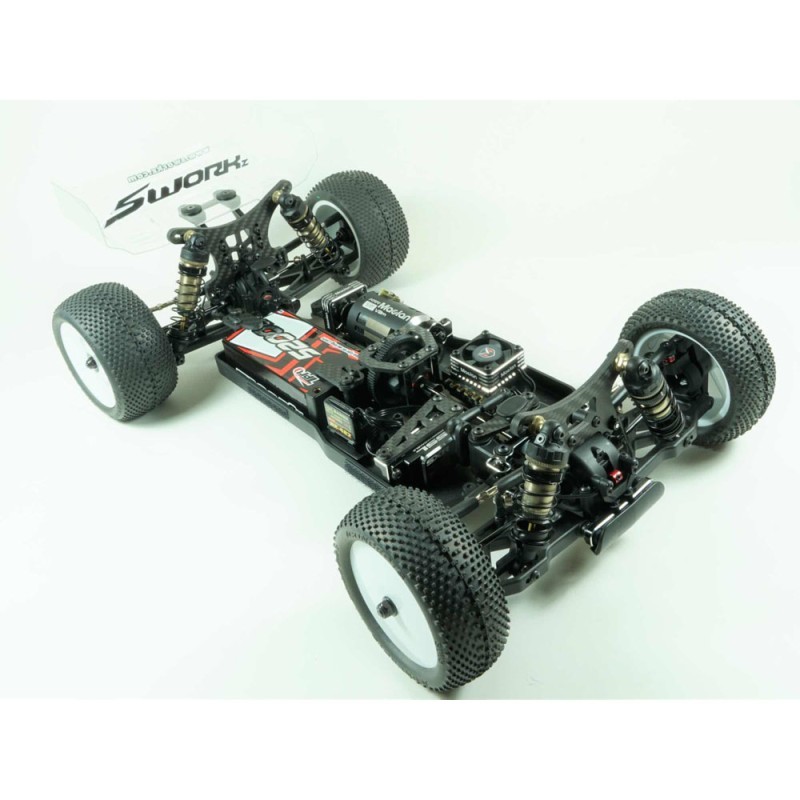

The SWORKz S14-4D (Dirt Edition) 1/10 4WD is designed for pure racing. It is an evolution from the successful S14-3D and S14-4C platform. The new geometry of the car provides optimised corner speeds and easy handling on carpet and very high grip tracks.

The S14-4D features the new gear box with adjustable diff. system on a T7075 hard anodised and lightened aluminium chassis. The flex of the chassis can be changed by different material side guards.

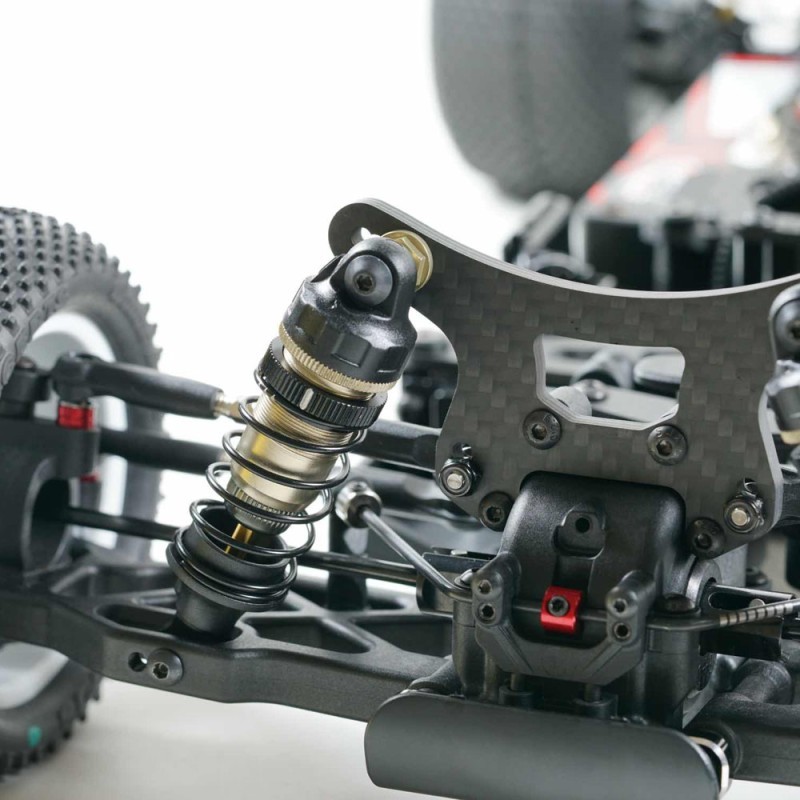

The S14-4D comes with SWORKz brand new designed 1/10 Pro-Shock System (Long version shock body). The shocks come with new Emulsion Precision Plastic Shock Caps, Shock Pistons with Seal Parts. The kit comes standard with a 4mm carbon full condition version for both front rear shock towers. The Teflon coated shock shafts provides smooth shock reactions. Black Line springs which are good designed with rotation fixed spring holders comes standard in the SWORKz S14-4D kit.

A brand new 5.5mm linkage ball stud system and 3.5mm durable turnbuckles are included in the S14-4D kit. Brand new adjustable ackerman plate with lightened steering bell crank System are included too. The S14-4D has new rear angled lower arms that provide a lower shock position which leads to a lower centre of gravity.

The kit is equipped with a quick release gear differential system, which can be mounted in 3 different positions. The weight of the gearbox is optimised to a perfect balance between size and strength.

The wing mount holder's height and angle can be adjusted. The rear width of the S14-4D can be changed with the new Synthesis Rear Hub System and rear CVA modularity.

The SWORKz S14-4D has a thin front sway bar and a completely new rear sway bar holder system.
The S14-4D standard comes with centre gear diff system for dirt racing performance.

The S14-4D body shell has good aerodynamics.

The SWORKz development team focused on using materials, corresponding to the highest quality standards, when designing the car. You will find only 100% SWORKz quality in the S14-4D kit.

S14-4D Pro Kit Features:

• T7075 hard anodised & lightened aluminium chassis
• Adjustable flex system with various side guards
• 4 different battery positions
• Front and rear 4mm Carbon shock towers
• Changeable Ackerman plate
• New front and rear sway bar system
• Super light anodised front wheel axles
• Front wing system
• Front aluminum toe in plate
• Easy adjustable Ackerman plate
• The brand new 5.5mm linkage ball stud system
• The brand new 3.5mm linkage turnbuckles system
• Adjustable differential position
• Quick differential release system
• Lower shock position design with adjustable shock tower position
• Brand new design SWORKz 1/10 Pro Shock System (Long shock body version)
• Adjustable rear wing height
• Adjustable rear wing angle
• Rear width adjustable with hubs included length adjustable CVA
• New Synthesis Rear Hub System
• Fully adjustable square aluminium toe in plate „SWORKz“ engraved
• New designed rear sway bar holder
• Front and rear wheel hex hard anodised
• Super light CAD optimised gearbox
• Precision plastic emulsion shock cap system
• Unique designed shock stud screws
• Hard anodised stock studs
• Black line shock spring
• Rotation protected spring holder
• Teflon hard coated shock shaft
• Hard coated shock body
• 6 Ball bearings servo system
• Quick release electronic plate
• Battery pad included
• Balanced motor position
• Body shell with optimised aerodynamic design

Required Items:

Motor, ESC, Sensor Cable, Shorty LiPo battery, Charger, Servo, 2-Channel Radio System, Paint and tools for assembly.
